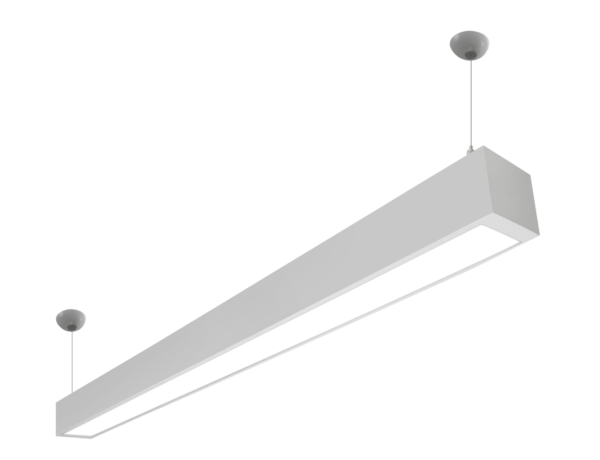

517 LED Pendant
CARACTERÍSTICAS
• Luminaria colgante que forma líneas de luz en aplicaciones arquitectónicas.
• Utiliza tecnología LED – SMD con alta eficiencia y excelente flujo luminoso.
• Temperatura de color 4000K y 6500K.

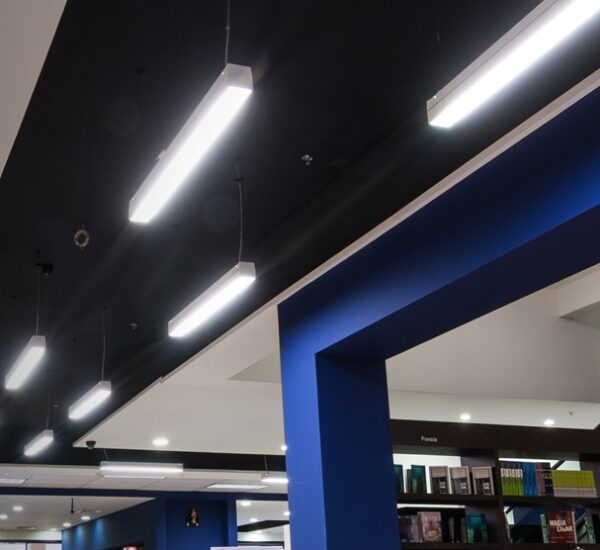

APLICACIONES
Aspectos técnicos
| Modelo | Dimensión Nominal | Potencia | Flujo Luminoso | Difusor | Instalación | Temp. de color | Eficacia | Código Base | Código con batería |
| 517 LED Pendant | 24” | 20 W | 2000 lm | D15 | Colgar | 4000 k | >100 | P03418-23 | |
| 517 LED Pendant | 24” | 20 W | 2000 lm | D15 | Colgar | 6500 k | >100 | P08502-36 | |
| 517 LED Pendant | 48” | 25 W | 3000 lm | D15 | Colgar | 4000 k | >120 | P07564-21 | P08392-21 |
| 517 LED Pendant | 48” | 25 W | 3000 lm | D15 | Colgar | 6500 k | >120 | P06281-21 | P08504-36 |
| 517 LED Pendant | 48” | 35 W | 4000 lm | D15 | Colgar | 4000 k | >120 | P03419-15 | P04253-15 |
| 517 LED Pendant | 48” | 35 W | 4000 lm | D15 | Colgar | 6500 k | >120 | P04933-21 | P08507-36 |
| 517 LED Pendant | 96” | 50 W | 6000 lm | D15 | Colgar | 4000 k | >120 | P08914-21 | P08915-21 |
| 517 LED Pendant | 96” | 50 W | 6000 lm | D15 | Colgar | 6500 k | >120 | P08916-21 | P08917-21 |
| 517 LED Pendant | 96” | 75 W | 8000 lm | D15 | Colgar | 4000 k | >120 | P06567-21 | P06715-21 |
| 517 LED Pendant | 48” Ext | 75 W | 8000 lm | D15 | Colgar | 6500 k | >120 | P07391-21 | P08515-36 |
| 517 LED Int-Ext | 48” Ext | 20 W | 2000 lm | D15 | Colgar | 4000 k | >100 | P07410-23 | |
| 517 LED Int-Ext | 48” Int | 20 W | 2000 lm | D15 | Colgar | 4000 k | >100 | P07411-23 | |
| 517 IP | 1X4” | 40 W | 5000 lm | D15 | Sobreponer | 6500 k | >120 | P08798-36 |
Descargas
| CÓDIGO | DESCRIPCIÓN | FICHA TÉCNICA | IES |
| UL517 | 24-1-2000L-20W-D6-PD-4K |  |  |
| UL517 | 24-1-2000L-20W-D6-PD-6.5K | | |
| UL517 | 48-2-3000L-25W-D6-PD-4K | | |
| UL517 | 48-2-3000L-25W-D6-PD-6.5K | | |
| UL517 | 48-2-4000L-35W-D6-PD-4K | | |
| UL517 | 48-2-4000L-35W-D6-PD-6.5K | | |
| UL517 | 96-4-8000L-75W-D6-PD-4K | | |
| UL517 | 96-4-8000L-75W-D6-PD-6.5K | | |
| UL517IP | 1X4-4-5500LD6-PAR-6.5K | | |
