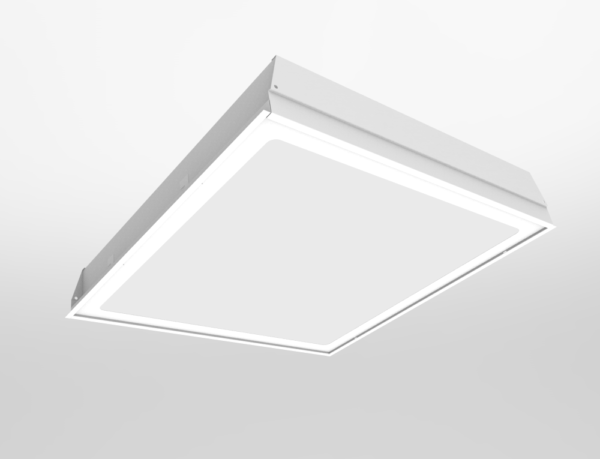

503 LED
CARACTERÍSTICAS
• Luminaria LED para aplicaciones comerciales, industriales y arquitectónicas.
• Luminaria para empotrar en cielo suspendido de tipo “T” invertido de 1 pulgada
de alto, de madera, cielo Gypsum o tabla yeso.
APLICACIONES
GUÍA DE INSTALACIÓN
Descargar
Aspectos técnicos
| Modelo | Tipo LED | Cant.Módulos | Potencia (W) | Flujo Lum. Total Difusor #1 | Flujo Lum. Total Difusor Opal |
| 503 LED | SMD | 2 | 18 | 1980 | 1960 |
| 503 LED | SMD | 2 | 27 | 2700 | 2670 |
| 503 LED | SMD | 2 | 32 | 3250 | 3220 |
| 503 LED | SMD | 2 | 36 | 3750 | 3710 |
| 503 LED | SMD | 3 | 39 | 4210 | 4170 |
| 503 LED | SMD | 3 | 42 | 4760 | 4720 |
| 503 LED | SMD | 4 | 52 | 5790 | 5740 |
| 503 LED | SMD | 4 | 56 | 5880 | 5830 |
| 503 LED | SMD | 4 | 52 | 6410 | 6360 |
| 503 LED | SMD | 4 | 56 | 6520 | 6470 |
| 503 LED | SMD | 4 | 73 | 8340 | 8280 |
| 503 LED | SMD | 6 | 78 | 8800 | 8730 |
| 503 LED | SMD | 6 | 104 | 12530 | 12450 |
| 503 LED | SMD | 2 | 18 | 2210 | 2200 |
| 503 LED | SMD | 2 | 27 | 3010 | 3000 |
| 503 LED | SMD | 2 | 32 | 3630 | 3610 |
| 503 LED | SMD | 2 | 36 | 4160 | 4140 |
| 503 LED | SMD | 4 | 52 | 6240 | 6220 |
| 503 LED | SMD | 4 | 56 | 6420 | 6390 |
| 503 LED | SMD | 4 | 73 | 8120 | 6390 |
Descargas
| CÓDIGO | DESCRIPCIÓN | FICHA TÉCNICA |
| P24558 | LED Batten E-lite 8W 6.500K |  |
| P24558 | LED Batten E-lite 8W 6.500K | |
